What is a Placement Group? Strategies for Optimizing Instance Placement
When working with traditional physical infrastructure, you have full control over placing Server A next to Server B (plugged into the same switch for faster networking) or placing Server C in a different building (for disaster protection). But when moving to the Cloud, everything is virtualized — how do we control this?
The answer is Placement Group.
Today, let’s explore what Placement Groups are and how to use them to optimize performance or safety for your systems on AWS.
1. What is a Placement Group?
Simply put, a Placement Group (PG) is a logical configuration that allows you to “hint” to AWS about how to arrange your EC2 Instances on physical hardware.
When you launch a group of virtual servers, AWS places them randomly by default to optimize for AWS. However, with PG, you can request AWS to:
- Place them as close together as possible (to optimize throughput, reduce latency).
- Or place them as far apart as possible (to optimize availability, reduce hardware risk).

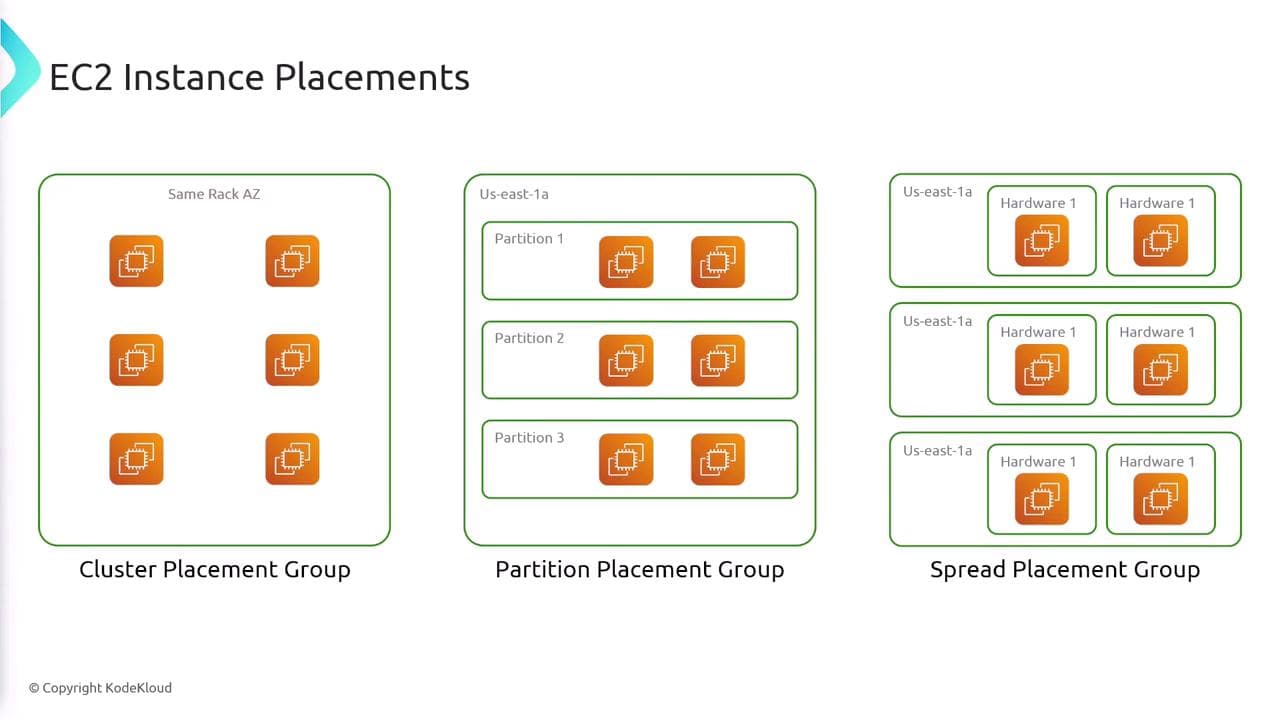

Currently, AWS provides 3 main strategies: Cluster, Spread, and Partition.
2. Types of Placement Groups
A. Cluster Placement Group
This is the “strength in unity” strategy.
-
Mechanism: AWS will try to place your instances within the same Availability Zone (AZ), and even on the same or adjacent server racks.
-
Advantages:
-
Extremely low network latency.
-
Extremely high throughput between nodes (up to 10-100 Gbps).
-
Disadvantages: “All or nothing.” Since they are clustered together, if that rack experiences a power or network failure, your entire cluster of instances could go down at once.
-
Use Case: Suitable for High Performance Computing (HPC) applications, graphics rendering, or big data processing applications that require continuous and instantaneous network communication.
B. Spread Placement Group
The opposite of Cluster, this is the “divide and conquer” strategy aimed at maximizing safety by avoiding “putting all your eggs in one basket.”
-
Mechanism: Instances are guaranteed to be placed on completely different hardware (racks, power supplies, networks).
-
Advantages: Extremely high availability. A hardware failure on one instance will definitely not affect another.
-
Disadvantages:
-
Limited in quantity. You can have a maximum of 7 running instances per AZ within a Spread PG. The reason is simply that physical space for complete isolation is finite.
-
Use Case: Suitable for critical applications and database clusters where the survival of each node is the top priority.
C. Partition Placement Group
This is the “hybrid child,” the perfect balance between Cluster and Spread designed for modern distributed systems.
-
Mechanism:
-
AWS divides your group into logical partitions called Partitions.
-
Instances within the same Partition can share hardware (like Cluster).
-
But different Partitions are placed on different racks (like Spread).
-
Supports up to 7 partitions per AZ.
-
Advantages:
-
Allows scaling to a much larger number of instances than Spread (since each partition can hold many instances).
-
Still ensures fault isolation: if Partition 1’s rack fails, Partition 2 continues running normally.
-
Special feature: Instances can access Metadata to know exactly which Partition they are in, enabling applications to self-coordinate data placement (Topology-aware).
-
Use Case: Large-scale distributed data systems (Big Data) such as Hadoop HDFS, Cassandra, Kafka. (For example: Kafka can replicate data to a partition on a different rack to ensure safety).
3. Quick Comparison Table
| Feature | Cluster | Spread | Partition |
|---|---|---|---|
| Primary Goal | Network Performance | Availability | Balance (Distributed Systems) |
| Physical Location | Same Rack / Same AZ | Completely Different Racks | Same Rack (within 1 partition), Different Racks (between partitions) |
| Limits | No instance limit | Max 7 instances / AZ | Max 7 partitions / AZ |
| Multi-AZ Support | No (Single AZ only) | Yes | Yes |
| Best For | HPC, Super computing | Database, Critical Apps | HDFS, Kafka, Cassandra |
4. How to Use
A typical example is when you need to deploy a backend API application that requires high availability. You immediately think of the Spread strategy to distribute your instances across different racks, and even different AZs.
You need to go to the AWS Console and create a Spread Placement Group.
Then deploy your instances and assign them to the Placement Group you just created. That’s it — super simple.
5. Important Notes
To use Placement Groups effectively, you need to remember the following rules:
- Cost: The good news is that creating a Placement Group is completely free. You only pay for the resources (EC2, EBS, etc.) you use inside it.
- Scope: Placement Groups (regardless of type) do not support Multi-Region. You cannot group instances located in Singapore and Virginia into a single PG.
- Optimization strategy:
- Need speed? Choose Cluster.
- Need servers that never fail together? Choose Spread.
- Running Big Data / Distributed Apps? Choose Partition.
I hope this article gives you a clearer understanding of one of AWS’s infrastructure configuration “hidden gems.” See you in the next articles about AWS!
