What is AWS ENI? Why is it a “Secret Weapon” for High Availability?

If you think of an EC2 Instance as a computer, then the Elastic Network Interface (ENI) is the network interface card (NIC) that allows that computer to “communicate” with the outside world.

However, in the AWS cloud environment, an ENI is much more than just a simple network port. It is an “Elastic” component with flexible attach/detach capabilities, playing a core role in designing highly available systems (High Availability).

In this article, let’s explore the nature of ENI and how to use it to save your system when a server fails.

1. What Does an ENI Contain?

An ENI is not empty; it carries a networking “profile” that includes:

IP Address: A primary Private IPv4 address and secondary addresses.
MAC Address: A physical address that identifies the network card.
Security Groups: Firewall rules that define who can access this interface.
Public IP/Elastic IP: A public IP address (if assigned).

When you move an ENI from one server to another, the entire “profile” above follows it. This is the key point that makes ENI so powerful.

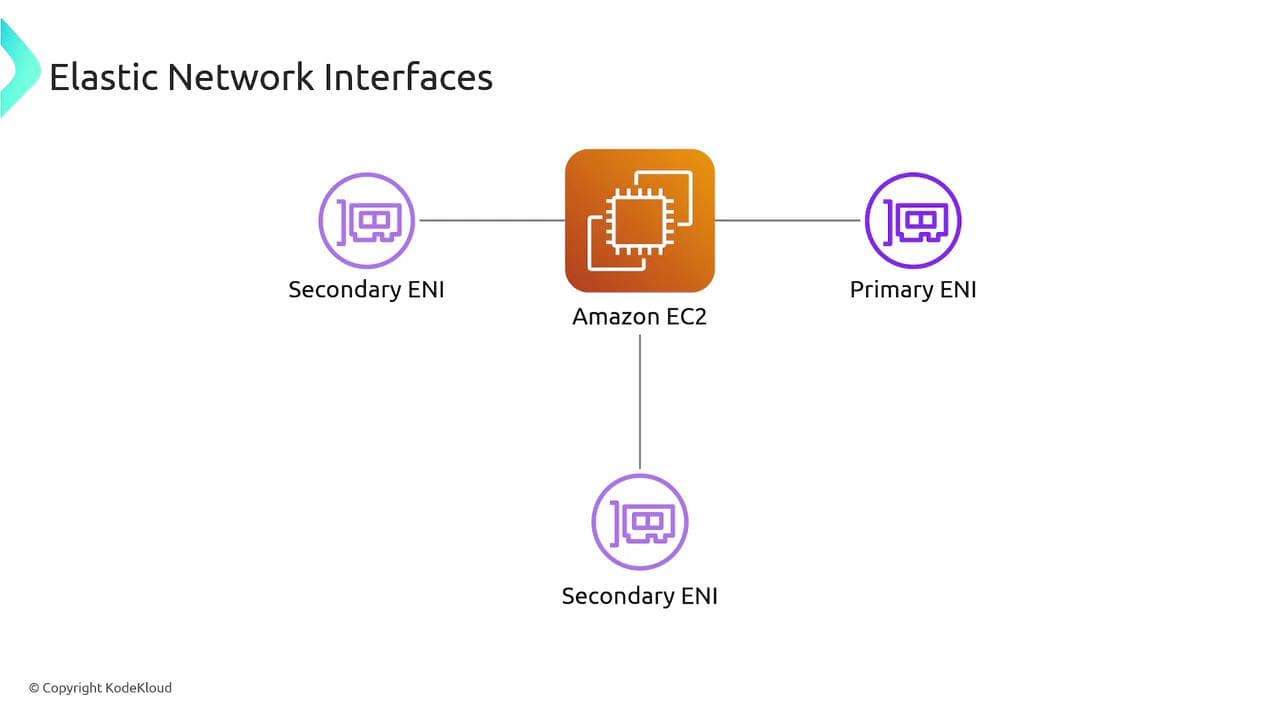

2. Classification: Primary vs. Secondary ENI

When working with EC2, you will encounter two types of ENI:

Primary ENI (eth0): This is the “backbone” network card, created at the same time as the EC2 instance.
Characteristics: Permanently tied to the EC2 lifecycle. You cannot detach it. If you delete the EC2 instance, this network card disappears as well.
Secondary ENI (eth1, eth2…): These are additional network cards that you create separately.
Characteristics: They operate independently. You can create one on its own, detach it from Machine A, and attach it to Machine B at any time (Hot attach/detach).

An EC2 instance itself is purely a compute resource (consisting of CPU, RAM, and Disk). It has no concept of IP or networking. That is why when an EC2 instance is launched, it comes with an ENI attached, which is where all networking information such as Private IP, Public IP (or Elastic IP), MAC Address, and Security Groups actually resides.

Here is an easy way to visualize it: Think of it like a desktop PC at home:

The case (Case + CPU + RAM): This is the EC2. Without a network cable or WiFi card plugged in, it has no IP address at all.
The network card (NIC): This is the ENI. The IP address and MAC address are properties that belong to this card.

When you see an IP address displayed on the EC2 management console (EC2 Console), what AWS is actually doing is:

Checking which ENI is attached to that EC2 (usually eth0).
Reading the IP information from that ENI and displaying it for your convenience.

Proof: If you have a secondary ENI (eth1) attached to Machine A with IP 10.0.0.5:

When you detach it from Machine A: Machine A loses IP 10.0.0.5.
When you attach it to Machine B: Machine B immediately gets IP 10.0.0.5.

3. When Do You Need Additional ENIs? (Use Cases)

Most basic web servers only need a Primary ENI. However, Solutions Architects commonly use Secondary ENIs for the following 3 scenarios:

Scenario 1: Separate Management Network

You want to separate customer traffic from admin management traffic:

ENI 1 (Public): Opens ports 80/443 for customers to access the web.
ENI 2 (Private): Only opens port 22 (SSH) for Admins, and only allows access from the company’s internal network (VPN). -> This maximizes security.

Scenario 2: Preserving Software Licenses (Licensing)

Some enterprise software (like Oracle, SAP…) manages licenses based on the MAC Address. If the old server fails, creating a new server will generate a new MAC Address -> the license becomes invalidated. Solution: Use a dedicated ENI for that software. When replacing the server, you bring the ENI (with the old MAC Address) to the new server, and the software continues to work normally.

Scenario 3: Low-Cost Failover

This is the most useful application. Instead of using an expensive Load Balancer for small systems, you can use an ENI to redirect traffic when the primary server goes down.

4. Hands-On Guide: Failover Technique Using ENI

Imagine you have Server A (Main) running an internal web application and Server B (Standby) on standby. Both are in the same Availability Zone (e.g., ap-southeast-1a).

Goal: When Server A dies, immediately transfer the access IP to Server B.

How to do it:

Step 1: Create an independent Secondary ENI. Suppose it has Private IP 10.0.1.50.
Step 2: Attach this ENI to Server A. Now, users accessing 10.0.1.50 will reach Server A.
Step 3 (Incident): Server A suddenly crashes (OS crash, hardware failure).
Step 4 (Recovery):

Go to the AWS Console, select ENI 10.0.1.50.
Click Detach (remove from Server A).
Click Attach and select Server B.

Result: Within seconds, IP 10.0.1.50 now points to Server B. Users don’t need to change their IP configuration, and the system continues operating.

Pro tip: In practice, DevOps engineers often write a script (using AWS Lambda or CLI) to automate this Detach/Attach process as soon as the monitoring system detects that Server A has failed (Health check failed).

5. A Critical Limitation to Remember

Despite its flexibility, ENI has one physical limitation you must not forget:

ENI is bound to an Availability Zone (AZ).

You cannot detach an ENI from a server in Zone A and attach it to a server in Zone B. Therefore, when designing a Failover solution using ENI, the primary and standby servers must be in the same AZ.

Summary

In practice, ENIs are rarely encountered directly, because for most regular AWS users, eth0 is more than enough. It is created automatically and operates behind the scenes, and you don’t need to touch it.
